The CAT 140H and XCMG GR2153 are two popular motor graders in the used construction equipment market. Both machines can be used for road leveling, site preparation, ditching, slope work, earthmoving, and road maintenance.
However, there are important differences between them in machine age, engine power, blade size, maintenance, spare parts, and purchase cost.
If you are planning to buy a used motor grader, this guide compares the used CAT 140H and XCMG GR2153 to help you choose a suitable machine for your project and budget.
CAT 140H vs XCMG GR2153 Specifications
| Specification | CAT 140H | XCMG GR2153 |
|---|---|---|
| Engine | CAT 3176C* | Cummins QSB6.7* |
| Rated Power | Approx. 123–153 kW* | Approx. 164 kW |
| Operating Weight | Approx. 14,700 kg | Approx. 16,500 kg |
| Standard Blade Width | Approx. 3,658 mm | Approx. 4,270 mm |
| Forward Speeds | 8 | 6 |
| Main Advantage | Proven design and parts availability | Newer machines and higher power |
| Typical Applications | Road construction and maintenance | Roads, earthworks and infrastructure |
*Specifications may vary depending on production year, market, engine configuration, and machine version.
CAT 140H vs XCMG GR2153: Key Differences
Although both machines are designed for grading and road construction, they differ considerably in engine performance, machine age, blade size, maintenance requirements, and overall ownership cost.
1. Engine and Power
Engine power is one of the most obvious differences between these two motor graders.
The CAT 140H was produced in different configurations. Depending on the version, engine power can range from approximately 123 kW to 153 kW.
Its variable horsepower system provides additional power when needed during higher-speed grading operations.
The XCMG GR2153 is commonly equipped with a Cummins QSB6.7 engine rated at approximately 164 kW, giving it sufficient power for road construction, earthmoving, leveling, and other grading work.
On paper, the GR2153 provides higher rated engine power.
However, when buying a used motor grader, original horsepower should not be the only consideration. Engine condition, working hours, fuel system condition, maintenance history, and previous working environment can have a greater effect on actual performance.
A well-maintained older grader may perform better than a newer machine that has been poorly maintained.
2. Blade Size and Grading Capacity
Blade size affects how much material a motor grader can move and level in each pass.
The CAT 140H commonly uses a standard moldboard approximately 3,658 mm wide, although different blade sizes and attachments may be installed.
The XCMG GR2153 is commonly equipped with a blade approximately 4,270 mm wide.
The wider blade can be useful for:
- Large road projects
- Site leveling
- Earthmoving
- Road base preparation
- Large-area grading
However, blade width alone does not determine grading performance.
When inspecting a used motor grader, buyers should also check:
- Cutting edge wear
- Moldboard deformation
- Blade side shift
- Circle wear
- Drawbar condition
- Hydraulic cylinders
- Excessive movement or play
Replacing or repairing a badly worn circle and blade system can add significant cost after purchase.
3. Machine Age
Machine age is one of the biggest differences between a used CAT 140H and XCMG GR2153.
The CAT 140H is an older-generation Caterpillar motor grader. Many machines available on the used equipment market have already accumulated considerable working hours.
That does not automatically make the CAT 140H a poor choice.
The model has a long history in road construction, and a properly maintained machine can continue working reliably for many years.
However, because of its age, buyers should pay particular attention to wear in major components.
Check the:
- Engine
- Transmission
- Hydraulic system
- Tandem drive
- Articulation joint
- Differential
- Circle and drawbar
- Axles
- Tires
- Electrical system
The XCMG GR2153 can generally be found in newer production years compared with the CAT 140H.
For buyers who prefer a relatively newer used motor grader, this can be an important advantage because there may be less age-related wear on the frame, hydraulic components, wiring, cab, and other systems.
Still, production year should never replace an actual machine inspection.
4. Maintenance and Spare Parts
Parts availability is an important consideration when buying used construction equipment.
One major advantage of the CAT 140H is its long history in the international market.
Caterpillar equipment is widely used around the world, and buyers in many countries may have access to:
- Genuine CAT parts
- Aftermarket replacement parts
- Used components
- Independent repair workshops
- Mechanics familiar with CAT graders
This can make long-term maintenance easier.
However, because the CAT 140H is an older model, some machines may already require major component repair or rebuilding.
The XCMG GR2153 is manufactured in China, and replacement parts can generally be sourced conveniently from the Chinese market.
For international buyers purchasing a used XCMG motor grader from China, this can simplify parts procurement.
Buyers should still check local XCMG parts and service availability in the destination country, especially if the machine will operate in remote areas.
5. Operator Experience
Operator familiarity can also affect productivity.
The CAT 140H uses a traditional grader operating layout and has been widely used in road construction projects for many years.
Operators who already have experience with Caterpillar H-series motor graders may find it easier to operate and maintain.
The XCMG GR2153 also uses a conventional motor grader layout, so experienced grader operators can normally become familiar with the machine quickly.
If your company already operates Caterpillar machines, purchasing another CAT grader may simplify:
- Operator training
- Maintenance procedures
- Parts management
- Workshop servicing
The same principle applies if your fleet already contains XCMG equipment.
6. Fuel Consumption and Operating Cost
Fuel consumption depends heavily on operating conditions rather than engine specifications alone.
Factors affecting fuel consumption include:
- Grading depth
- Ground conditions
- Operating speed
- Engine condition
- Tire condition
- Operator experience
- Working hours
- Maintenance condition
A larger engine does not necessarily mean proportionally higher fuel consumption.
For used equipment buyers, it is more useful to check whether the engine operates smoothly, whether there is abnormal smoke, whether power drops under load, and whether there are signs of fuel-system problems.
Long-term operating cost should include not only fuel but also maintenance, replacement parts, tires, repairs, and downtime.
Used CAT 140H Motor Grader Advantages
A used CAT 140H motor grader can be attractive to buyers looking for a proven motor grader platform.
Its main advantages include:
- Proven machine design
- Long history in road construction
- Strong international brand recognition
- Wide availability of replacement parts in many markets
- Large aftermarket parts supply
- Many mechanics are familiar with the machine
- Suitable for road construction and maintenance
The biggest consideration is machine age.
Condition can vary greatly between individual CAT 140H graders, so inspection is particularly important before purchasing.
Used XCMG GR2153 Motor Grader Advantages
A used XCMG GR2153 motor grader can be a practical alternative for buyers who want a relatively newer motor grader.
Its main advantages include:
- Higher rated engine power
- Larger standard blade
- Generally newer machines available
- Competitive used equipment prices
- Easy sourcing from the Chinese machinery market
- Suitable for road construction and earthmoving
- Convenient access to parts from China
For buyers importing used construction equipment directly from China, the GR2153 can provide a good balance between machine age, performance, and purchase cost.
CAT 140H vs XCMG GR2153 Price
There is no fixed price difference between a used CAT 140H and XCMG GR2153.
The price of a used motor grader depends on factors such as:
- Production year
- Working hours
- Machine condition
- Engine condition
- Transmission condition
- Tire condition
- Maintenance history
- Attachments
- Location
- Refurbishment level
Because CAT has strong international brand recognition, a CAT 140H in good condition can still maintain relatively strong resale demand despite its age.
A used XCMG GR2153 may offer buyers a newer production year at a competitive acquisition cost.
However, the cheapest machine is not necessarily the lowest-cost machine.
A grader that requires major engine, transmission, hydraulic, or circle repairs shortly after purchase can quickly eliminate any initial price advantage.

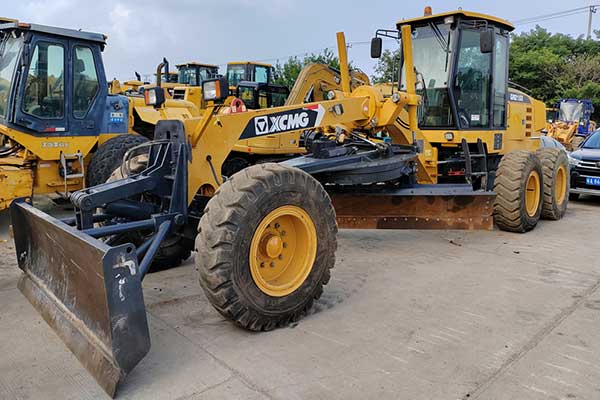

What Should You Check Before Buying?
Whether you choose a CAT 140H or XCMG GR2153, inspecting the actual machine is more important than comparing specifications.
1. Engine
Start the engine from cold whenever possible.
Check for:
- Excessive black, blue, or white smoke
- Abnormal engine noise
- Oil leakage
- Coolant leakage
- Unstable idle
- Excessive blow-by
- Loss of power under load
2. Transmission
Drive the machine through different forward and reverse gears.
Gear changes should be smooth without excessive delay, slipping, or abnormal noise.
Transmission repair can be expensive, so any obvious problem should be investigated before purchase.
3. Hydraulic System
Operate the blade, steering, articulation, and other hydraulic functions.
Look for:
- Slow hydraulic movement
- Cylinder leakage
- Weak hydraulic pressure
- Damaged hoses
- Abnormal pump noise
4. Circle and Blade
The circle and moldboard system experiences continuous wear during grading operations.
Excessive clearance or movement may indicate significant wear.
Inspect the circle teeth, drawbar, blade guides, cutting edges, and hydraulic cylinders carefully.
5. Tires
Motor grader tires can represent a considerable replacement cost.
Check:
- Tread depth
- Cracks
- Uneven wear
- Sidewall damage
- Tire condition
6. Articulation and Frame
Inspect the center articulation joint and machine frame for excessive movement, previous repairs, cracks, or welding.
Structural damage should be taken seriously when evaluating any used grader.
CAT 140H vs XCMG GR2153: Which Should You Choose?
There is no single motor grader that is better for every buyer.
A used CAT 140H may be suitable if you prioritize:
- Caterpillar brand recognition
- Established spare-parts availability
- Familiar maintenance
- Proven long-term use
- Strong resale recognition
A used XCMG GR2153 may be suitable if you prioritize:
- A newer production year
- Higher rated power
- Larger standard blade
- Competitive purchase cost
- Easy sourcing from China
For used construction equipment, however, machine condition is more important than brand alone.
A well-maintained XCMG GR2153 can be a better purchase than a heavily worn CAT 140H.
At the same time, a carefully maintained CAT 140H with a good engine, transmission, hydraulic system, and grading assembly can still provide reliable performance for road projects.
Therefore, compare the actual machines rather than choosing only according to the model name.
Conclusion
Now you know the main differences between the used CAT 140H and XCMG GR2153 motor graders.
The CAT 140H is known for its proven design, global parts availability, and long service history, while the XCMG GR2153 offers higher rated power, a larger blade, and generally newer machines at competitive prices.
When buying a used motor grader, however, the actual condition of the machine is more important than specifications alone. Always compare the production year, working hours, engine, transmission, hydraulic system, blade assembly, tires, and maintenance history before making a decision.
